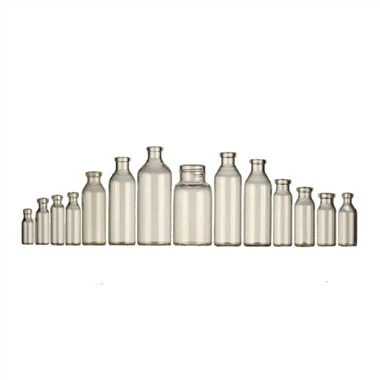

20ml 25ml Neutral Borosilicate Injection Vials
Medicinal glass is in direct contact with drugs, and the chemical stability, strength and barrier performance requirements are higher than ordinary glass. Medicinal glass should have good water resistance, acid resistance, alkali resistance and other characteristics. At present, borosilicate glass is mainly used.
The acid and alkali resistance of borosilicate glass belongs to the first class, and the quench and heat resistance is strong. The chemical stability, mechanical strength and impact resistance of borosilicate glass are better than other glass. In addition, as a drug package, long-term contact with liquid medicine and blood will not precipitate, which can effectively protect the chemical properties of drugs and health food.
Product details
■Base Material: neutral borosilicate glass
■Color: clear & amber
■Brand Name: ZCP
■Size: 20ml 25ml
■Sealing type: Aluminium plastic caps
■Acid resistance: Class S1
■Alkali resistance: not lower than Class A2
■coefficient of linear thermal expansion: (4.9~5.3)*10-6K-1 (20℃~300℃)
Neutral Borosilicate Injection Vials (ZC and YBB)
| type | Volume | body OD |
Constriction OD |
Overall height |
Body height |
Constriction height |
Wall thickness |
| ZC | 20ml | 28.00±0.20 | 15.90±0.30 | 55.00±0.40 | ≥35.00 | 8.30±0.30 | 1.20±0.06 |
| ZC | 25ml | 30.00±0.20 | 16.30±0.30 | 65.00±0.40 | ≥50.00 | 8.40±0.30 | 1.20±0.06 |
| YBB | 20ml | 28.00±0.40 | max16.50 | 60.00±0.50 | 40.00 | 8.50±0.50 | 1.30±0.10 |
Factory advantage:
Our company (Chongqing Zhengchuan Pharmaceutical Packaging Material Co., Ltd.),Our products mainly cover neutral borosilicate tubing injection vials, neutral borosilicate glass ampoule bottles, low borosilicate tubing injection vials, soda lime oral liquid bottles and bottle cap series.
* The largest pharmaceutical glass tubing bottle manufacturer in China, with average annual production and sales of more than 10 billion bottles + caps.
* At present the only private main board listed enterprise in the industry in China. Stock code: 603976.
* We have 4 bases, 5 branch factories, over 1800 staff and 31 patents.
* We boast a CNAS laboratory recognized by China Conformity Assessment Commission (Registration Number: CNAs l7694).
* Our products meet the standards of YBB, ISO, EP & USP.
* Our products have passed the DMF filing of the US FDA (DMF Number Assigned: 21564, 21565).
* We are the first in the industry to pass ISO15378 and ISO9001 quality management system certification.
