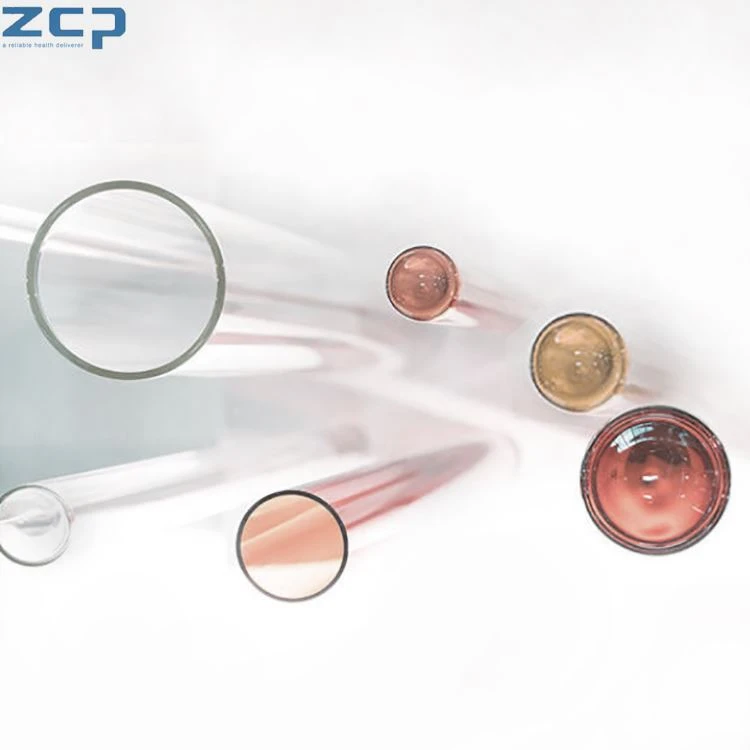

We produce best quality pharma neutral boron glass tubes of different specifications. They’re used to make neutral boron ampoules.
Neutral borosilicate pharma glass is a kind of pharma glass, which is mainly used for medicine or drug packaging. It has the advantages of small expansion coefficient, strong resistance to extreme cold and heat, high mechanical strength, strong impact resistance, good chemical stability, acid, alkali and water resistance.
| The Physic-chemical Properties | |
| Physic properties | |
| Coefficient of mean linear thermal expansion a (20°C; 300°C) acc to ISO 7991 | 4.9x 10-6K-1Trans |
| Transformation temperature Tg | 515°C |
| Glass temperature at annealing point logn=13 | 535°C |
| Glass temperature at soft point logn=7.6 | 783°C |
| Glass temperature at working point logn=4 | 1020°C |
| Density P at 25°C | 2.32 g/cm3. |
| Chemial Properties | |
| Hydrolytic Resistant Class | |
| Acc. to ISO 719 | HGB I |
| Acc. toUSP 25 | Type I |
| Acid Resistant Class | AI |
| Alkali Resistant Class | A2 |
Our factory has the advanced automatic detection system
Full vision imaging automatic inspection can accurately and reliably separate genuine products from unqualified products.
Promote the transformation from manual sampling inspection to mechanized full inspection. More effectively avoid specification deviation, cracks and visible foreign matters (glass chips, black spots, yellow spots, white spots, etc.).
| Glass Tube for Ampoule | ||
| Glass tube 0D (mm) | Toler ance | Glass tube thi ckness (mm) |
| 14.75 | 土0.15 | 0.55 |
| 16 | 土0.15 | 0.55 |
| 18.4 | 土0.20 | 0.6 |
| 22 | 土0.24 | 0.7 |
The visual imaging principle is adopted for detection, which can judge the visible foreign matter more accurately, accurately and reliably realize the separation of genuine and unqualified products, and minimize the missed detection rate.
High standards and strict requirements shall be maintained in the detection process, and the computer shall monitor the operation status in real time and control the product quality.
Intelligent sorting technology and classified statistics of detected data provide data reference for process improvement.
